Water pumps-KPWP
Operating Data
- Capacity Upto 550 M3/Hr
- Head Upto 100 Mtrs
- Temperature Upto 90C
- Casing Pressure Upto 16 Bar
- Pump Size(Delivery Bore) 32 mm to 150 mm
- Conforming to Din 24255/EN 733
- Back pullout Design
- Gland packed / mechanical seal
- Closed Impeller Construction
- Only 3 Bearing beds to cover 34 models
- water supply in Agriculture & Industries
- Fire Fighting
- Air condition plants, De inking water
- pulp & paper mills
- C I
- SS 410
- SS304
- SS316..ETC

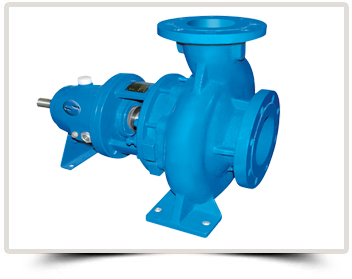

Chemical process pumps-KPCP
Operating Data
- CapacityUpto 900 M3/Hr
- HeadUpto 140 Mtrs
- TemperatureUpto 200°C
- Casing PressureUpto 22 Bar
- Pump Size(Delivery Bore) 32 mm to 200 mm
- Conforming to Din 24256 / ISO 2858
- Back pullout Design
- Engineered to APP 610
- 6th Edition
- Only 4 bearing beds to cover 33 models
- Closed Impeller
- Gland Packed / mechanical seal
- Petro Chemicals, Fertilizers,
- Corrosive acids, Alkalies
- oils, thermic fluids
- Clarified water, Sugar Industries
- Pulp & Paper mills
- C I
- SS 410
- SS304
- SS316..ETC
Chemical pumps ANSI-KPACH
Operating Data
- CapacityUpto 600 M3/Hr
- HeadUpto 180 Mtrs
- TemperatureUpto 200°C
- Casing PressureUpto 24 Bar
- Pump Size(Delivery Bore) 25mm to 200mm
- Conforming to ANSI B73.1
- Open Impeller Construction
- End section / top centre line discharge
- Only 3 bearing beds to cover 32 models
- Gland Packed / mechanical seal
- Simple external adjustment for Impeller wear
- Acids, Corrosive slurries
- All liquids with & without solids
- Green& Black liquor, caustic slurry,
- lime mud slurry, extraction, china clay ,
- Starch, Pulp , Paper mills .
- C I
- SS 410
- SS304
- SS316..ETC
Slurry pumps (paper & pulp)-KPPS
Operating Data
- CapacityUpto 2500 M3/Hr
- HeadUpto 80 Mtrs
- TemperatureUpto 140°C
- Casing PressureUpto 22 Bar
- Pump Size(Delivery Bore) 65 mm to 400 mm
- Heavy duty centrifugal design
- Conforming to DIN 24256
- Open Impeller with renewable front wear plate, and Closed impeller with wear ring.
- End suction / top centre line discharge
- Simple external adjustment for Impeller wear.
- Gland Packed / mechanical seal
- Pulp & Paper upto 7% consistency
- All liquor in basic metal, pulp & paper.
- High capacity requirement for all liquids & slurries
- Heavily contaminated raw sewage & sludge
- C I
- SS 410
- SS304
- SS316..ETC
Mixed flow pumps-KPMF
Operating Data
- CapacityUpto 3500 M3/Hr
- HeadUpto 45 Mtrs
- TemperatureUpto 100°C
- Casing PressureUpto 16 Bar
- Pump Size(Delivery Bore) 200 mm to 450 mm
- Conforming to DIN 24256
- Horizontal single stage
- End suction , discharge branch arranged tangentially upwards / horizontal
- Open and Closed Impeller construction
- Clean & slightly contaminated liquids
- Medium to Low heads and High discharge in water works, sewage works,
- Dewatering & pumping sea water
- Spray Pond / Injection Water in Sugar mills,
- pulp & paper mills.
- C I
- SS 410
- SS304
- SS316..ETC
Vertical pumps-KPVER
Operating Data
- CapacityUpto 1400 M3/Hr
- HeadUpto 100 Mtrs(328 feet)
- TemperatureUpto 120°C
- Casing PressureUpto 22 Bar
- Pump Size(Delivery Bore) 25 mm to 300 mm
- Vertical suspended with open / closed impellers
- Cantilever design OR with intermediate bush beaing support
- Simple mounting & self priming
- Upto 10 mtrs submersion depth
- Simple , fast external impeller adjustment.
- less space required
- Acids, alkalis slurries.
- High capacity requirement for acids, corrosive slurries.
- Sludge water in Pulp &Paper.
- SS 410
- SS304
- SS316..ETC
